YOUNG Ultrasonic Anemometers

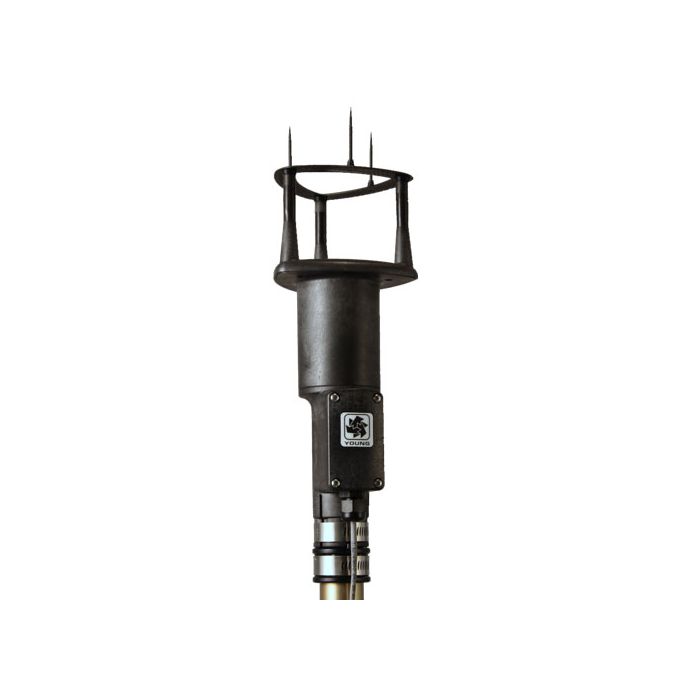

The YOUNG Model 86000 2D ultrasonic anemometer offers high performance and low power consumption in a compact size.

Features

  • Ideal for the most demanding wind sensing applications
  • Calibrated & tested in wind tunnel to provide accurate wind measurement over a wide operating range
  • Durable, corrosion-resistant construction with sensitive ultrasonic transducers
Starting At $1,603.43
Stock 1 AVAILABLE

Overview
The YOUNG Model 86000 2D ultrasonic anemometer offers high performance and low power consumption in a compact size. It is ideal for the most demanding wind sensing applications.

Design
The sensor features durable, corrosion-resistant construction with sensitive ultrasonic transducers secured in a streamlined molded frame. The 86000 is fully wind tunnel tested and calibrated to provide accurate wind measurement over a wide operating range.

Outputs
The standard sensor includes many useful output options. Analog voltage outputs are provided for wind speed and wind direction. 4-20 mA current signals are available for each channel and are well suited for long cable runs or for industrial settings where noise immunity is important. A variety of serial output formats are also available. These include ASCII text, RMYT (compatible with YOUNG displays), NMEA and SDI-12 formats.

Deployment
The sensor installs on readily available 1 inch (IPS) pipe. Wiring connections are made in a convenient weatherproof junction box; special mounting adapters, connectors and cables are not required.



Questions & Answers
Is my Anemometer waterproof?
The YOUNG 86000 Anemometer is rated IP66.
What is the starting threshold?
The starting threshold is
How accurate is the YOUNG Anemometer?
The YOUNG Anemometer has an accuracy of +/- 2 degrees.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Ultrasonic Anemometers
86000
Ultrasonic anemometer, analog & serial outputs
$1,603.43
1 Available
YOUNG Ultrasonic Anemometers
86106
Ultrasonic anemometer, NMEA serial output
$1,603.43
Drop Ships From Manufacturer
YOUNG Ultrasonic Anemometers
86000-SDI
Ultrasonic anemometer, SDI-12 output
$1,735.43
Drop Ships From Manufacturer
YOUNG Ultrasonic Anemometers
86004
Ultrasonic anemometer, heated
$2,279.43
Drop Ships From Manufacturer
YOUNG Ultrasonic Anemometers
86004-SDI
Ultrasonic anemometer, heated, SDI-12 output
$2,393.43
Drop Ships From Manufacturer
