YOUNG Wind Monitors

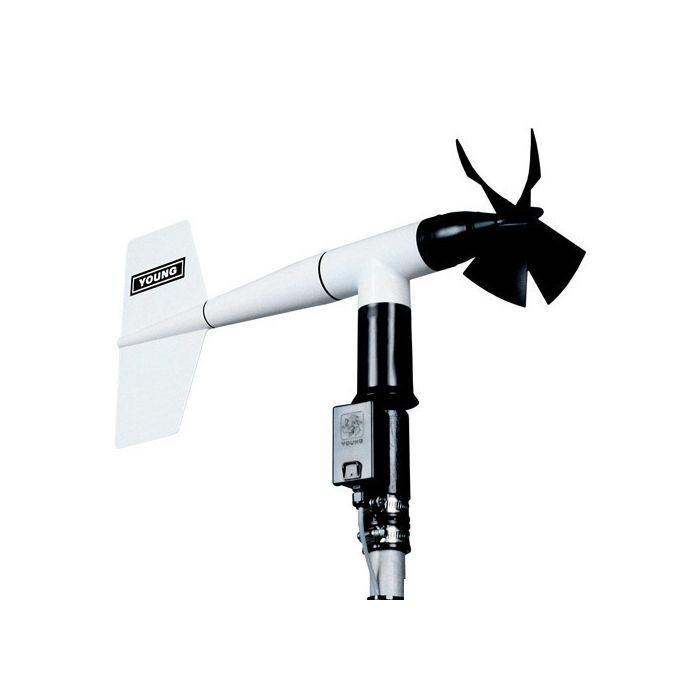

The YOUNG 05103 wind monitor is a field-proven high-performance wind sensor, making it ideal for a wide range of wind measuring applications.

Features

  • Wind speed sensor is a four blade helicoid propeller
  • Wind direction sensor is a durable molded vane
  • Corrosion resistant construction protects the sensor from harsh environments
Starting At $1,259.96
Stock Drop Ships From Manufacturer

Overview
The RM Young wind monitor is a field proven, high performance wind sensor. The wind speed sensor is a four blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal with frequency directly proportional to wind speed. Slip rings and brushes are eliminated for increased reliability.

Mechanics
The wind direction sensor is a rugged yet lightweight vane with a sufficiently low aspect ratio to assure good fidelity in fluctuating wind conditions. Vane angle is sensed by a precision potentiometer housed in a sealed chamber. With a known excitation voltage applied to the potentiometer, the output voltage is directly proportional to vane angle. A mounting orientation ring assures correct realignment of the wind direction reference when the instrument is removed for maintenance.

Durable
The instrument is made of UV stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used. Transient protection and cable terminations are in a convenient junction box. The instrument mounts on standard 1" pipe.

Models
The Wind Monitor is available with two additional output signal options. Model 05103V offers calibrated 0-5 VDC outputs, convenient for use with many data loggers, including the NexSens iSIC data logger. Model 05103L provides a calibrated 4-20 mA current signal for each channel, useful in high noise areas or for long cables (up to several kilometers). Signal conditioning electronics are integrated into the sensor junction box.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Wind Monitors
05103
Wind speed & direction monitor
$1,259.96
Drop Ships From Manufacturer
RM Young 05103V Wind Monitor
05103V
Wind speed & direction monitor, 0-5 V
$1,627.96
Drop Ships From Manufacturer
RM Young 05103L Wind Monitor
05103L
Wind speed & direction monitor, 4-20 mA
$1,622.96
Drop Ships From Manufacturer
