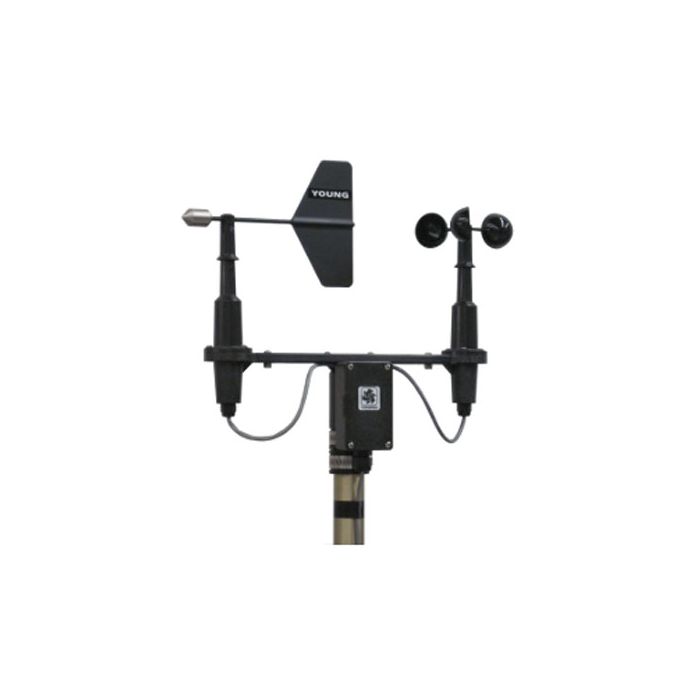

YOUNG Wind Sentry Anemometer & Vane

The YOUNG Wind Sentry Anemometer and Vane are professional quality sensors suitable for a wide range of wind measurement applications.

Features

  • Anemometer uses three lightweight hemispherical cups to measure wind speed
  • Vane employs a balanced assembly with position sensed by a long-life potentiometer
  • Precision stainless steel ball bearings are used throughout
Starting At $869.96
Stock Drop Ships From Manufacturer

The YOUNG Wind Sentry Anemometer and Vane are professional quality sensors suitable for a wide range of wind measurement applications. These economically priced sensors provide excellent sensitivity, corrosion resistance, and minimal parts count for easy maintenance.

The anemometer uses three lightweight hemispherical cups to measure wind speed. Cup wheel rotation produces an AC frequency that is linearly proportional to wind speed. The vane employs a balanced vane assembly with vane position sensed by a long life precision potentiometer. Precision stainless steel ball bearings are used throughout.

Range:
Wind Speed: 0-50 m/s (112 mph)
Azimuth: 360° mech.,352° electrical (8° open)
Accuracy:
Wind Speed: ±0.5 m/s (1.1 mph)
Wind Direction: ±5°
Threshold*:
Anemometer: 1.1 m/s (2.5 mph)
Vane: 1.3 m/s (2.9 mph) at 10°
Signal Output:
Wind Speed Signal: AC sine wave, 1 pulse per rev.
Wind Direction Signal: DC voltage from 10Kohm conductive plastic potentiometer, 1% linearity, life expectancy: 50 million revolutions.
Power Requirement: Potentiometer excitation 15 VDC max
Dimensions:
Overall height: 32 cm (12.6 in)
Crossarm Length: 28cm (11.0 in) between instrument centers
Vane length: 22 cm (8.7 in)
Cup wheel diameter: 12 cm (4.7 in)
Crossarm mounting: 34 mm (1.34 in) diameter (standard 1 inch pipe)
Shipping Weight: (03002) 1.3 kg (3 lb)

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Wind Sentry Anemometer & Vane
03002
Wind Sentry anemometer & vane
$869.96
Drop Ships From Manufacturer
YOUNG Wind Sentry Anemometer & Vane
03002L
Wind Sentry anemometer & vane, 4-20 mA = 0-50 m/s
$1,211.96
Drop Ships From Manufacturer
YOUNG Wind Sentry Anemometer & Vane
03002V
Wind Sentry anemometer & vane, 0-1 V = 0-50 m/s
$1,221.96
Drop Ships From Manufacturer
