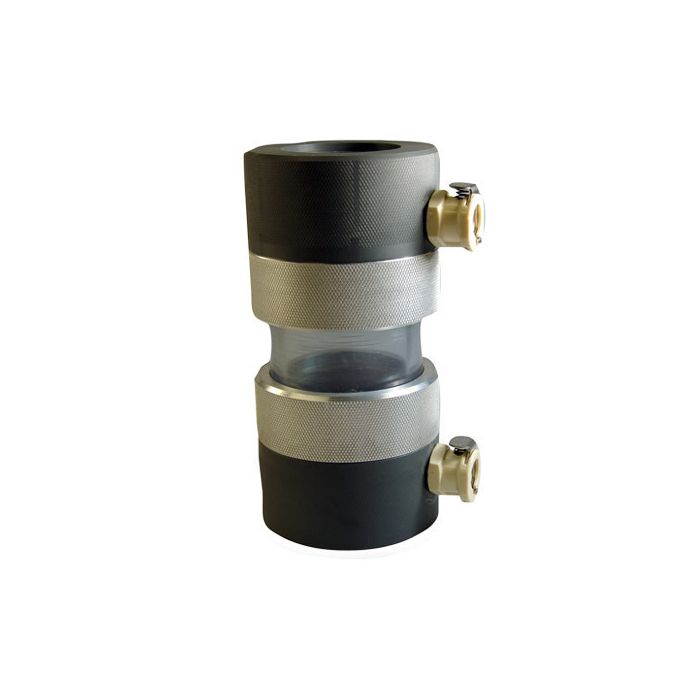

YSI 6850 Flow Cell

The YSI 6850 Flow Cell is designed for use with the Pro Series Quatro assembly in applications where it is impossible or undesirable to submerge the probe module into the sample.

Features

  • Compact design decreases sample volume
  • Easily disassembles for quick clean up and disinfection from well to well
  • Convenient inserts at the base accommodates the flow cell spike, tripod, or C-clamp
Your Price $484.50
Stock 3 AVAILABLE

Overview
Installation of the YSI 6850 flow cell is easy. Simply thread the flow cell onto the probe module of the Quatro cable assembly. Once secure, water can be pumped to the flow cell with a user-supplied pump. Water enters through the bottom of the flow cell, and passes through a diffuser plate. The water will leave through an opening at the top of the cell. This design ensures that flow is distributed evenly through the cell, eliminating dead zones of no flow along the sides.

  • Operating Pressure: 25 PSI max.
  • Operating Temperature: -10 to 60 C (14 to 140 F)
  • Volume: ~150mL with full sensor suite
  • Materials Contacting Sampler: Polyvinyl Chloride (PVC)
  • Weight: 612.35 grams (1.35 lbs)
  • Diameter (Main Body): 7.32cm (2.88")
  • Diameter (Tube): 6.04cm (2.38")
  • Height: 14.99cm (5.8")
  • (1) YSI 6850 150mL flow cell
  • (2) Quick-connect 3/8" tube fittings
  • (2) Quick-connect 1/4" tube fittings
  • (1) Tube of lubricant
  • (2) Replacement O-rings
