YSI EXO KorLink Bluetooth Adapter
Features
- View data in real-time, download files, and adjust deployment settings without pulling sonde
- IP67 rated and highly ruggedized to withstand drops, drips, and dunks
- Rechargeable Lithium-ion battery lasts for 15+ hours when powering an EXO3 with full payload
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview

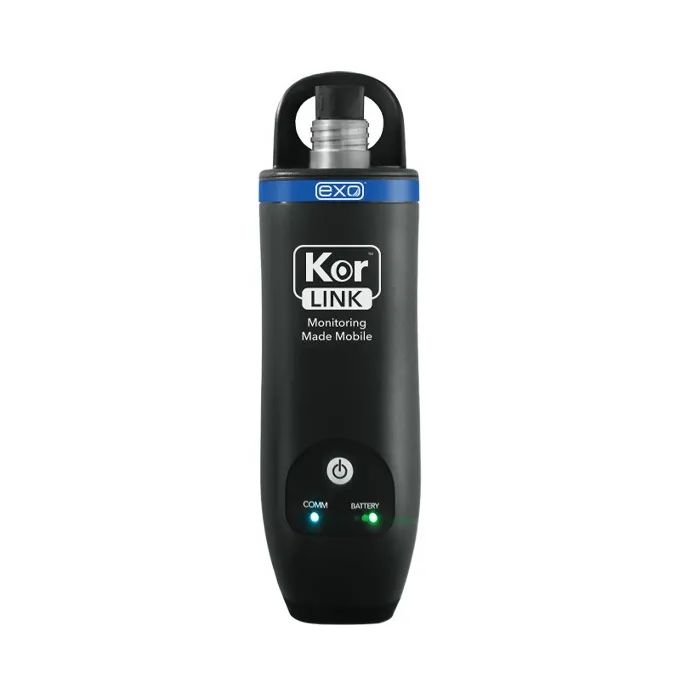

The EXO KorLink is a versatile Bluetooth adapter designed for seamless integration with any EXO sonde and field cable. Compatible with iOS, Android, tablets, and laptops, it enables full access to Kor Software via the mobile app or desktop platform.
KorLink features an integrated GPS and barometer for precise location tracking and pressure compensation, enhancing measurement accuracy. Ideal for discrete sampling, it converts your mobile device into a handheld meter for real-time data collection and sonde control. After sampling, KorLink also functions as a wireless interface, enabling seamless data transfer from a deployed EXO sonde to your device.
Battery Operating Time | 15+ hours (powering EXO3 with full payload) |
---|---|
Bluetooth Frequency |
2.402 – 2.480 GHz |
Bluetooth Transmission | Class 2, 10 m typical range |
Compliance |
BC; CE; RoHS; WEEE; FCC ID: T9J-RN42; ISED ICES; RCM; TELEC; VCCI |
Connectivity / Communications | Micro USB, Bluetooth, BTC for Computer, BTC with Android, BTLE Apple with SD Card |
Connector | MCIL Female wet-mate connector, USB Micro-AB receptacle |
Depth / Pressure Rating / Limit | Immersion up to 1 m for 30 minutes |
Enclosure |
Xenoy |
Equipment used with | Any EXO Sonde and Windows OS, Android, or iOS mobile device |
GPS | GPS + u-blox MAX-M10S Ultra Low Power GNSS Receiver Type, Lat/Long = decimal degrees; Altitude = m (80,000 m limit); 1.5 m CEP Position Accuracy |
Operating Temperature | -5°C to 50°C (23°F to 122°F) |
Power | Rechargeable Li-Ion battery (typically 9 hours of charging time for a full charge). 15+ hours of operating time (powering an EXO3 with full payload). 12 VDC voltage output. |
Size |
17.8 x 5.1 x 3.8 cm (7.0 x 2.0 x 1.5 in) |
Software |
Kor for Windows OS devices; Kor Mobile for Android and iOS mobile devices |
Storage Temperature | -20°C to 50°C (-4°F to 122°F) |
Warranty |
1 year |
Waterproof | IP-67 rated |
Weight | 242 g (0.53 lbs) |
- KorLink
- Rechargeable Lithium-Ion Battery (pre-installed)
- Detachable Belt Clip and Attachment Kit
- Micro USB Cable (for charging)
- USB Flash Drive
- International Outlet Adapter
- Quick Start Guide
- Belt Clip Installation Guide
