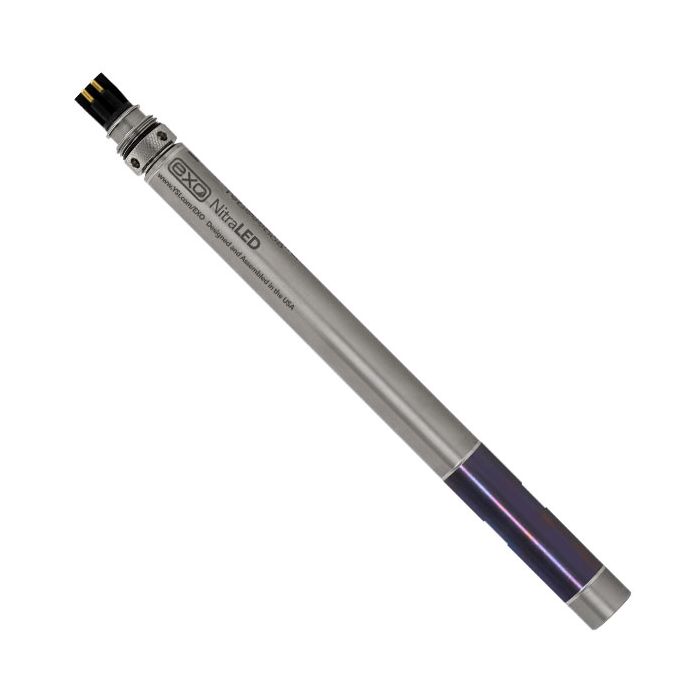

YSI EXO NitraLED UV Nitrate Sensor
Utilizing state-of-the-art UV LED technology, EXO NitraLED is an optical nitrate sensor designed for long-term, low-drift monitoring in freshwater applications.
Features
- Available at a fraction of the cost of other lamp-based nitrate sensors
- Built-in corrections for natural organic matter (NOM) and turbidity
- Designed for use with EXO1, EXO2, EXO3, or EXO2s water quality sondes
Your Price
Call
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
| Accuracy (0-10mg/L) |
± 0.1 mg/L–N or 5% of reading, w.i.g. (within 2°C) |
|---|---|
| Accuracy (10-30mg/L) |
± 7% of reading |
| Depth Rating | 250 m |
| Drift / Stability |
≤ 0.2 mg/L–N |
| Equipment used with | EXO™ |
| Light Source | UV LED (x2) |
| Lower Detection Limit |
0.005 mg/L–N |
| Measurement Range |
0-30 mg/L–N |
| Medium |
Fresh water |
| Nominal Wavelengths | 235 nm, 275 nm |
| Operating Temperature | 5-35°C |
| Pathlength | 10 mm |
| Precision |
≤ 2% Coefficient of Variation (CV) |
| Response Time | T95 < 30 seconds |
| Sensor | Optical, absorbance |
| Storage Temperature | -20-80 °C |
| Warranty |
2 years |
- YSI EXO NitraLED UV Nitrate Sensor Specifications
- YSI EXO NitraLED UV Nitrate Sensor Handbook
- YSI EXO NitraLED UV Nitrate Sensor Corrections for Turbidity and NOM
- YSI EXO NitraLED UV Nitrate Sensor Site Specific Correction Procedure
- YSI EXO NitraLED UV Nitrate Sensor Installation Guide
- YSI EXO Water Quality Sonde Specifications
- YSI EXO Water Quality Sonde Manual
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
608090
EXO NitraLED UV nitrate sensor kit, includes sensor brace kit & wiper brush
Request Quote
Check Availability
