KISTERS Dual Tipping Bucket Flow Gauges

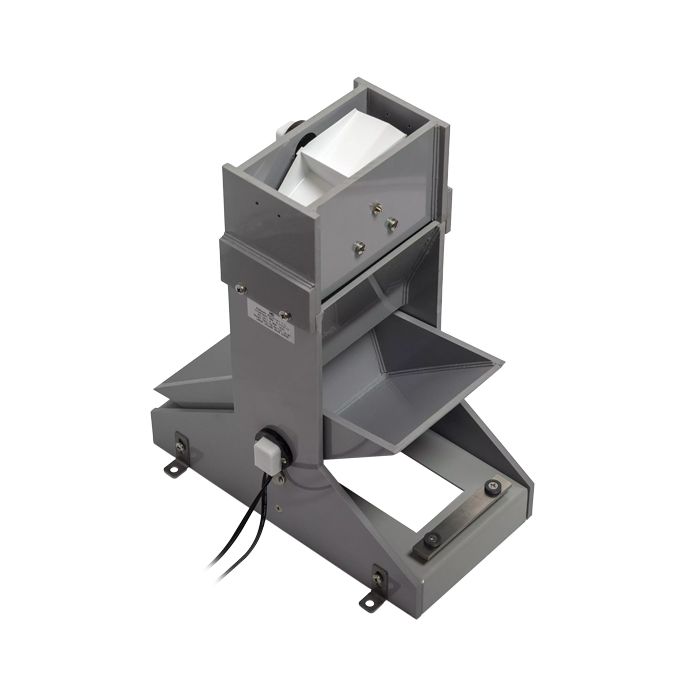

The KISTERS TBL-70 dual tipping bucket flow gauge is used for measuring water seepage coming out of a pipe or a drain.

Features

  • Two distinct buckets provide best accuracy over a large range of flows
  • Two buckets operate simultaneously up to 6L per minute
  • Includes 24VDC dual reed switch
Starting At $2,792.00
Stock Check Availability

Overview
The KISTERS TBL-70 dual tipping bucket flow gauge is used for measuring water seepage coming out of a pipe or a drain. The unit is equipped with two distinct buckets to provide best accuracy over a large range of flows: a smaller bucket at the top of the gauge to measure at low flows and a larger one at the bottom to measure at high flows. Each bucket is connected to its own dual reed switch effectively enabling redundant data acquisition in two distinct data loggers, or providing data to two devices (e.g. a data logger and a counting display), etc.

Operation
The two buckets operate simultaneously up to 6L per minute. At low flows where the large bucket is not full to tip, more accurate results can be obtained from the small bucket’s reed switch output. At higher flows above 6L per minute, the smaller bucket at the top has to be removed by the user. Data is then generated solely by the larger bucket’s reed switch output.

Material PVC plastic and stainless steel
Resolutions
  • Metal bucket, top of gauge: 70 ml, up to 6 L/minute
  • PVC bucket, bottom of gauge: 0.5 L or 1.0 L (selectable), up to 25 L/minute
Accuracy

0.5/1L bucket

Flow Rate (L/min) Error
0.5 -2 %
1.0 -6 %
5.0 -10 %
10.0 -14 %
15.0 -18 %
20.0 -20 %
25.0 -22 %

 70ml bucket

Flow Rate (L/min) Error
0.5-3.0 -3 %
3.0-6.0 -5 %
>6.0 NA
Signal Out
  • 2 X dual reed switch, one for each bucket
  • Protection: Mechanical: silicon rubber potting; Electrical: varistor surge protection
  • Max capacity: 24 VDC (0.5 amp max)
  • Resistance: Initial contact resistance 0.1 Ω
  • Maximum tipping bucket frequency: 108 to 109 tips
Flow Rate Maximum 25 L/minute
Level Bulls eye level adhered to stainless steel base
Environmental Conditions
  • Relative humidity: 0 to 95 % „
  • Temperature: -20 °C to +70 °
Dimensions & Mass
  • Base Length x Width: 390 x 235 mm (incl. mounting brackets)
  • Height: 468 mm (when 70 ml bucket installed); 390 mm (when 70 ml bucket removed)
  • Weight: 6 kg (packed 7 kg)
