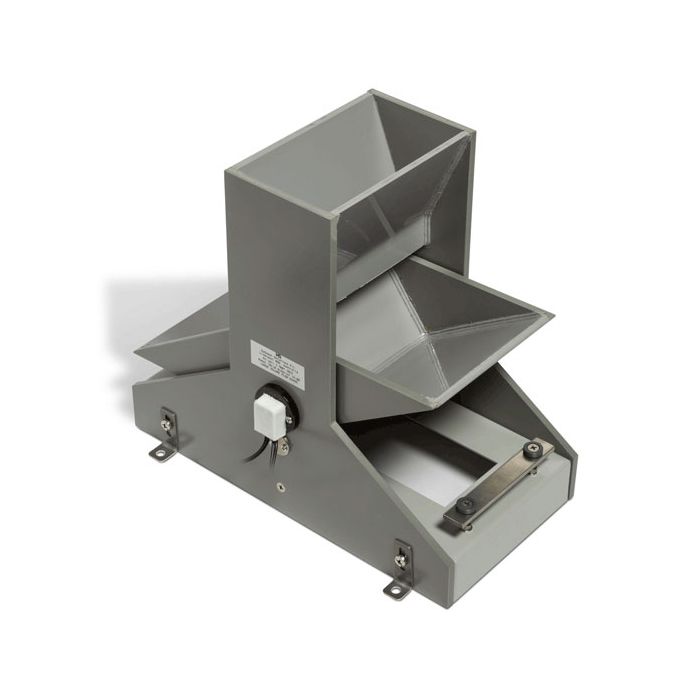

KISTERS Single Tipping Bucket Flow Gauges
The KISTERS TB0.5L and TB1L Tipping Bucket Flow Gauges are used for measuring water flow coming from a pipe or a drain.
Features
- Bucket tip volume set at 0.5L or 1L per tip
- Maximum flow rate of 25 liters per minute
- Includes 24VDC dual reed switch
Starting At
$2,120.00
Stock
Check
Availability
Fondriest Exclusives
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The KISTERS single tipping bucket flow gauges TB0.5L and TB1L are used for measuring water seepage coming out of a pipe or a drain. In both models, the bucket is connected to its own dual reed switch, effectively enabling redundant data acquisition in two distinct data loggers, or providing data to two devices (e.g. a data logger and a counting display), etc.
Design
TB0.5L and TB1L are perfectly suitable for flow measurements in water-carrying sediments or iron hydroxide deposition. Made of plastics and coated steel, these devices are both robust, fast and easy to clean.
Mechanics
The bucket tips when it is filled to maximum. The magnet integrated into the bucket rearside slides along the reed switch mounted in the flow gauge’s frame. The magnetic field forces a contact closure in the reed switch. The latter can be recorded by one or two connected data loggers. The number of tips per time unit is a measure of the flow rate.
| Material | PVC plastic and stainless steel | ||||||||||||||||
| Resolutions | PVC bucket: 0.5 L or 1.0 L (selectable), up to 25 L/minute | ||||||||||||||||
| Accuracy |
|
||||||||||||||||
| Signal Out |
|
||||||||||||||||
| Flow Rate | Maximum 25 L/minute | ||||||||||||||||
| Level | Bulls eye level adhered to stainless steel base | ||||||||||||||||
| Environmental Conditions |
|
||||||||||||||||
| Dimensions & Mass |
|
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
I-003066
TB0.5L single tipping bucket flow gauge, 0.5L per tip, 2x 10m cables
$2,120.00
Check Availability
Notice: At least 1 product is not available to purchase online
