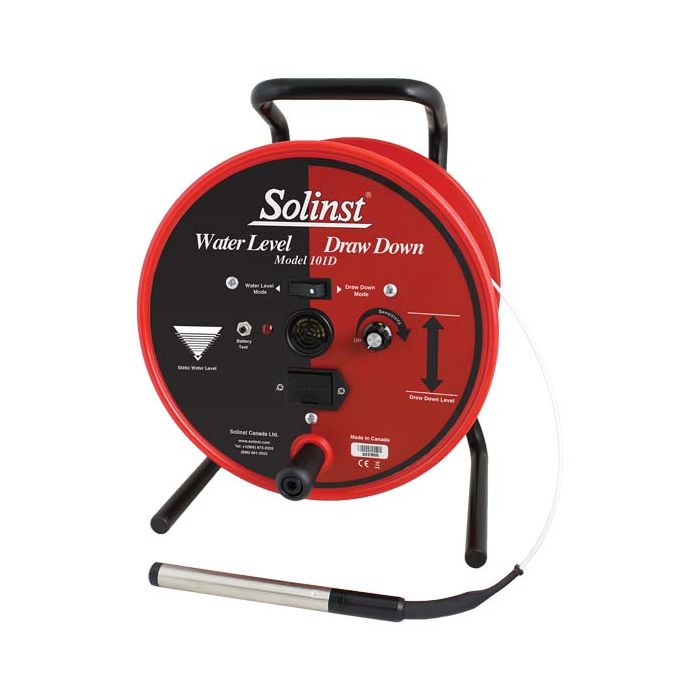

Solinst Model 101D Water Level DrawDown Meters
The Solinst 101D Water Level DrawDown Meter has all of the same qualities as the well-known 101 P7 Water Level Meter, with the added feature of a drawdown mode.
Features
- Both static water level and drawdown modes in one meter
- One convenient toggle makes it easy to switch between two functions
- Uses the same robust, submersible probe as the 101 P7 Water Level Meter
List Price
$669.00
Starting At
$635.55
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Solinst 101D Water Level DrawDown Meter has all of the same qualities as the well-known 101 P7 Water Level Meter, with the added feature of a drawdown mode. One simple toggle switches between static water level and drawdown measurements. Water level mode allows accurate depth to water measurements in wells, boreholes, standpipes and tanks. The drawdown function is used to monitor falling hydraulic head during low flow sampling, pumping and other aquifer/well tests. It also ensures a pump’s intake remains submerged during purging or well development.
Mechanics
The 101D Water Level DrawDown Meter uses a corrosion-resistant stainless steel probe connected to clearly marked flat tape, fitted on a well-designed reel. It is powered by a standard 9 volt battery. In water level mode, when the zero point on the probe enters water, an electronic circuit is completed, activating the buzzer and light. The depth to water is then read off the tape. In drawdown mode, the circuit is reversed—the buzzer and light are triggered when the probe is in air. The battery test button can check the circuit in both water level and drawdown modes. The on/off sensitivity control allows the buzzer to be turned down in cascading water and ensures a clear signal in high and low conductivity conditions.
- (1) Model 101D Water Level DrawDown Meter
- (1) Tape guide/datum
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
114115
Model 101D water level drawdown meter with P7 probe & imperial increments, 100'
$635.55
Check Availability
Accessories
0 Item Selected
Notice: At least 1 product is not available to purchase online
