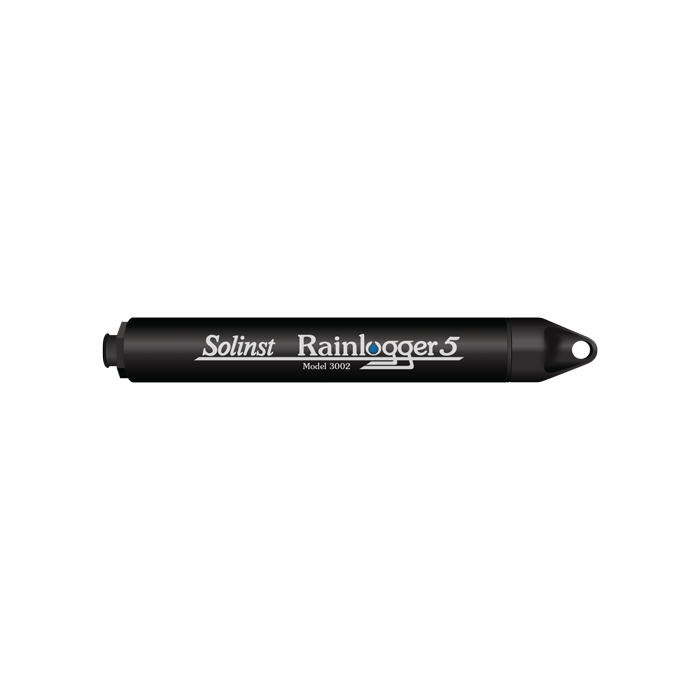

Solinst Rainlogger 5 Rain Gauge Data Logger
The Solinst Rainlogger 5 is an inexpensive datalogger designed to record the tips of a standard tipping bucket rain gauge with a reed switch output.
Features
- Single-eye optical interface that is easy to clean and more scratch-resistant
- Increased memory: 150,000 sets of data
- Double o-ring seals for increased leakage protection
List Price
$418.00
Your Price
$397.10
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Rainlogger 5 is an inexpensive datalogger designed to record the tips of a standard tipping-bucket rain gauge. This compact and durable field unit offers long-term reliability and convenience with a battery that lasts up to 10 years and ESD (electrostatic discharge) protection with an ABS housing. The event timestamp and total rainfall per period is logged in non-volatile memory, which holds up to 100,000 readings. Sampling is event-based, as the Rainlogger 5 records and saves each tip of the tipping bucket as it happens.
Intuitive Levelogger Software
Levelogger customers can add rainfall data to their water level monitoring networks using the intuitive Levelogger Software. The Rainlogger 5 provides easy incorporation of precipitation data into existing Levelogger data. Rainfall data can correlate precipitation events and changes in groundwater or surface water levels. The Rainlogger 5 is compatible with all Solinst Levelogger 5 communication and deployment accessories. Logged data can be downloaded directly to a PC, using the Solinst Levelogger App, or a DataGrabber 5 data transfer device.
Interactive
The Rainlogger 5 is simply programmed with the user-friendly Levelogger Software. A Field Reader 5 or Desktop Reader 5 connects the Rainlogger 5 to a laptop or desktop PC, and the Levelogger Software automatically detects the attached Rainlogger. The Rainlogger 5 is easily deployed in the field, using a 3-pin connector cable attached to the rain gauge. Data downloading can be "All Data," "Append Data," or "Data Dump" at any time. Data can be displayed in graph or table format and exported to other programs. The Rainlogger 5 has self-test capability, reliable memory and the ability to upgrade firmware.
- (1) Solinst Rainlogger 5
- (1) Cable with flying leads, 6 ft.
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
114622
Rainlogger 5 rain gauge data logger, includes 6' connection cable
$397.10
Check Availability
