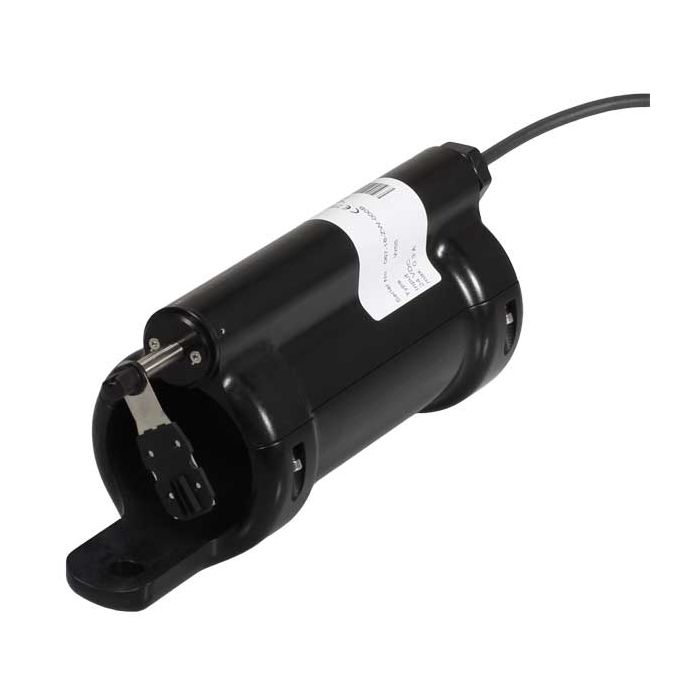

TriOS W55 V2 Mechanical Wiper

The TriOS W55 V2 is a mechanical wiper designed for use with the NICO, NICO plus, and OPUS UV sensors.

Features

  • Cleans UV optics of sensor, extending maintenance intervals
  • Wipe is initiated from supply voltage of 12-24 VDC
  • Requires wiper axis & blade set for appropriate path length
Your Price Call
Stock Check Availability

Overview
The TriOS W55 V2 Mechanical Wiper offers an additional cleaning option for TriOS NICO, NICO plus, and OPUS sensors with path lengths up to 10mm. The wiper housing can be mounted on the sensor in just a few steps and offers reliable cleaning of the measuring window. The new magnetic lock of the axle allows for a quick and easy wiper blade change without any tools.

Blockage Detection
The new version of the wiper now has blockage detection and removal and a service mode that increases the life of the wiper with regular use. The accessory can also be used in seawater up to a depth of 10m.

Power Supply
12-24 VDC (±10%)
Power Consumption
About 2-6 W in operation; max. 0.75 W in standby

Path Lengths
2mm, 5mm, 10mm
Maximum Pressure
3 bar
Protection Type
IP68
Inflow Velocity
Up to 10 m/s
up to 32.8 fps
Oparating Temperature
+2 to +40°C
~ +35.6 °F to +104 °F
Storage Temperature
-10 to +70 °C
~ +14 °F to +158 °F

Control Connection
4-pin M8-plug, includes 1.5m pigtail adapter
Trigger Input
5-24 VDC ±10%
Current Consumption of Trigger Input
2-15 mA
Operating Time (max.)
3 seconds

Dimensions L x ø
175mm x 80mm
~ 6.9“ x 3.2“
Weight
0.52 kg
~ 1.15 lbs
Materials
NBR, POM, PE (PP, EPDM), Titanium or V4A
Warranty
1 Year (EU & USA: 2 Years)
Support Effort
Typically ≤ 0.5 hours/month
Maintenance interval
Application dependent
Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
TriOS W55 V2 Mechanical Wiper
02A100008
W55 V2 mechanical wiper system (requires wiper axis & blade set), 10m cable with M8 connector & 1.5m pigtail adapter
