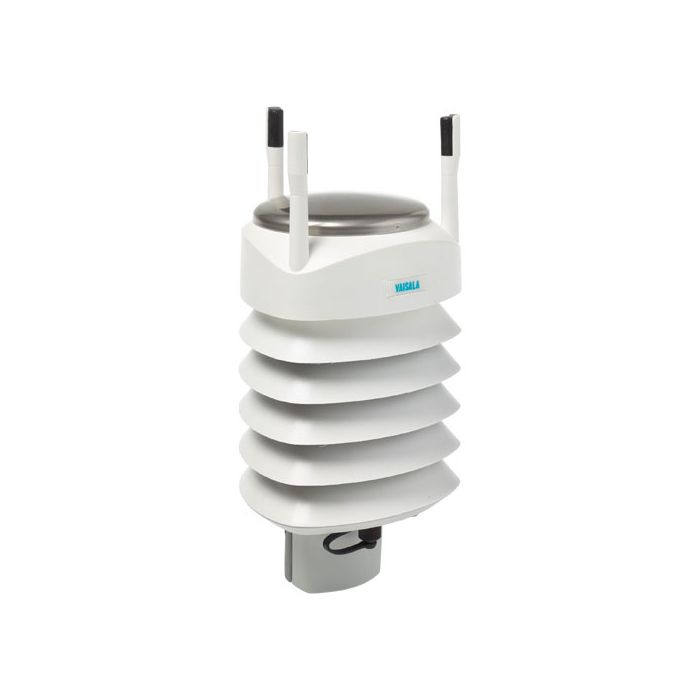

Vaisala WXT536 Multi-Parameter Weather Sensor

The Vaisala WXT536 is a multi-parameter weather sensor that simultaneously measures air temperature, humidity, pressure, rainfall and wind in a compact platform with optional heating.

Features

  • Low power consumption is ideal for battery powered systems
  • No moving parts for durability and long maintenance intervals
  • Easy integration with 3rd party data collection platforms
Starting At $3,285.22
Stock Check Availability

Flexibility
The Vaisala WXT536 is a multi-parameter weather sensor that simultaneously measures air temperature, humidity, pressure, rainfall and wind in a compact platform with optional heating. Low power consumption enables solar panel applications. The Vaisala WXT530 Series focuses on maintenance-free operations in a cost-effective manner.

Integration
The series offers analog input options for additional third-party analog sensors. With the help of the built-in analog to digital converters, the Weather Transmitter WXT530 turns into a small, cost-effective weather parameter hub. Additional parameters include the solar radiation and external temperature sensor. Further, the analog mA output option for wind speed and direction enables a wide variety of industrial applications. The WXT530 exceeds IEC60945 maritime standard.

Solid Performance
The WXT530 Series has a unique Vaisala solid state sensor technology. To measure wind, the ultrasonic Vaisala WINDCAP Sensors are applied to determine horizontal wind speed and direction. Barometric pressure, temperature, and humidity measurements are combined in the PTU module using capacitive measurement for each parameter. This module is easy to change without contacting the sensors. The precipitation measurement is based on the unique acoustic Vaisala RAINCAP Sensor without flooding, clogging, wetting, and evaporation losses.

Questions & Answers
Do you sell configurations of the WXT536 sensor not listed on the website?
There a many configuration options available on the WXT536, and the website includes the most popular. For additional configurations, please refer to the Order Form on the Documents tab and contact us for a quote on a custom configuration.
Can the Vaisala WXT536 weather sensor interface with external sensors?
Yes, the WXT536 multi-parameter sensor can interface with external sensors like pyranometers, level sensors, rain gauges and resistance temperature sensors. Instructions for wiring are listed in the manual.
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
Vaisala WXT536 Multi-Parameter Weather Sensor
WXT536A1A1A1A1A1B
WXT536 air temperature, humidity, pressure, rainfall & wind sensor
$3,285.22
Check Availability
Vaisala WXT536 Multi-Parameter Weather Sensor
WXT536A1B1A1A1A1B
WXT536 air temperature, humidity, pressure, rainfall & wind sensor with M12 male connector
$3,360.19
More On The Way
Vaisala WXT536 Multi-Parameter Weather Sensor
WXT536A1A2A1A1A1B
WXT536 air temperature, humidity, pressure, rainfall & wind sensor, includes heating
$3,417.22
Check Availability
Vaisala WXT536 Multi-Parameter Weather Sensor
WXT536A1B2A1A1A1B
WXT536 air temperature, humidity, pressure, rainfall & wind sensor with M12 male connector, includes heating
$3,492.19
Check Availability
