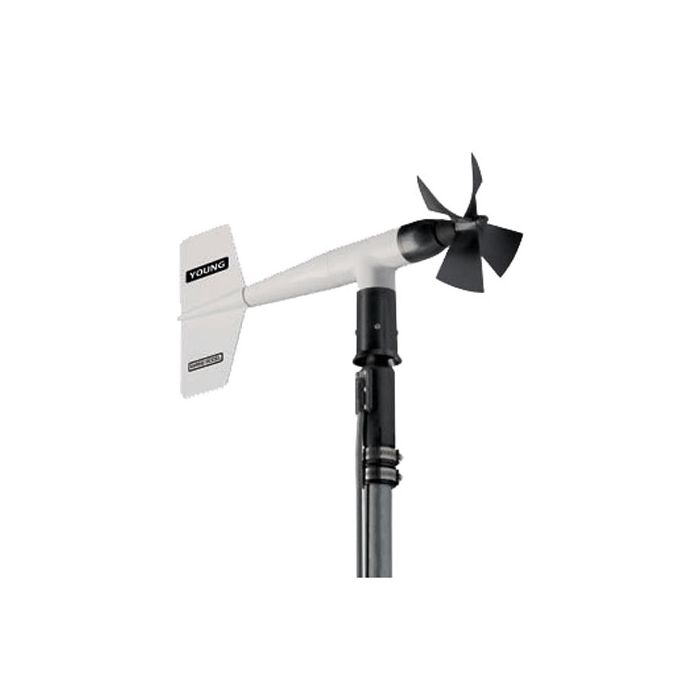

YOUNG Marine Wind Monitor

The YOUNG 05106 marine wind monitor is a field-proven, high-performance wind sensor.

Features

  • Wind Speed 0-100 m/s (224 mph)
  • Designed for offshore, marine use
  • Corrosion resistant construction protects the sensor from harsh environments
Starting At $1,433.96
Stock Drop Ships From Manufacturer

Overview
Designed for offshore and marine use, The RM Young 05106 Marine Wind Monitor-MA features special waterproof bearing lubricant and a sealed heavy-duty cable in place of the standard junction box for offshore and marine applications.

Wind Speed Sensor
The wind speed sensor is a four-blade helicoid propeller. Propeller rotation produces an AC sine wave voltage signal with frequency directly proportional to wind speed. Slip rings and brushes are eliminated for increased reliability.

Wind Direction Sensor
The wind direction sensor is a rugged yet lightweight vane with a sufficiently low aspect ratio to assure good fidelity in fluctuating wind conditions. Vane angle is sensed by a precision potentiometer housed in a sealed chamber. With a known excitation voltage applied to the potentiometer, the output voltage is directly proportional to vane angle. A mounting orientation ring assures correct realignment of the wind direction reference when the instrument is removed for maintenance.

Design
The instrument is made of UV-stabilized plastic with stainless steel and anodized aluminum fittings. Precision grade, stainless steel ball bearings are used. Transient protection and cable terminations are in a convenient junction box. The instrument mounts on a standard 1" pipe.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Marine Wind Monitor
05106
Marine wind speed & direction monitor, 3m cable
$1,433.96
Drop Ships From Manufacturer
YOUNG Marine Wind Monitor
05106-8M
Marine wind speed & direction monitor, 8m cable
$1,453.96
Drop Ships From Manufacturer
YOUNG Marine Wind Monitor
05106-12M
Marine wind speed & direction monitor, 12m cable
$1,487.96
Drop Ships From Manufacturer
