YOUNG Marine Wind Trackers

The YOUNG 06206 Marine Wind Tracker offers special features for ship-board use, including bold front panel graphics to indicate wind angle relative to the vessel.

Features

  • Wind speed is displayed in your choice of unitsKNOTS, MPH, KM/H, M/S
  • Wind direction information is clearly displayed on a circular compass pattern of LEDs
  • A variety of inputs and outputs including 4-20 mA, Serial NMEA & Voltage are standard
Your Price $1,140.00
Stock Drop Ships From Manufacturer

Overview
The RM YOUNG 06206 Marine Wind Tracker offers special features for shipboard use. Wind speed is displayed in the user's choice of units: KNOTS, MPH, KM/H, M/S. Maximum wind speed is saved on the display until reset by the operator. 4-20 mA inputs, Serial NMEA, and Voltage outputs are standard on the Marine Wind Tracker. Alarms for both wind speed and wind direction are included.

Design

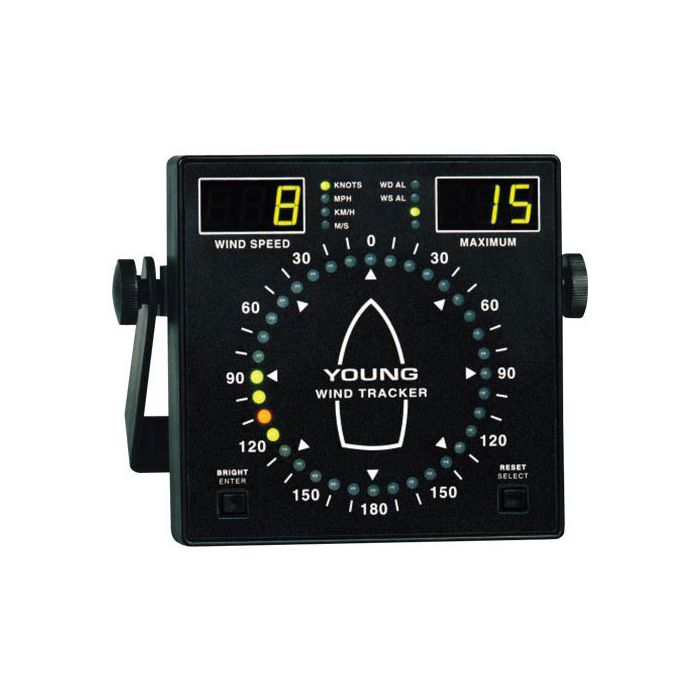

Wind direction information is clearly displayed on a circular pattern of LEDs. Bold front panel graphics give a quick indication of wind angle relative to vessel heading. Brightness control allows adjustment for best viewing in any light. Luminous front panel markings allow viewing even in a darkened pilothouse.

The Marine Wind Tracker is very compact. The face size is 144mm x 144mm to fit standard DIN panel configurations. Depth is 36mm for easy mounting on vertical bulkheads or wall surfaces. 12-30 VDC input power enables the Wind Tracker to be powered by the ship's batteries. A universal mounting bracket and AC wall adapter are also included. The Model 06260 Protective enclosure offers extra protection for wet or dusty locations.

Questions & Answers
No Questions
Did you find what you were looking for?

Select Options

  Products 0 Item Selected
Part #
Description
Price
Stock
Quantity
YOUNG Marine Wind Trackers
06206
Marine Wind Tracker wind speed & direction indicator, 100-240VAC, 50-60Hz
$1,140.00
Drop Ships From Manufacturer
