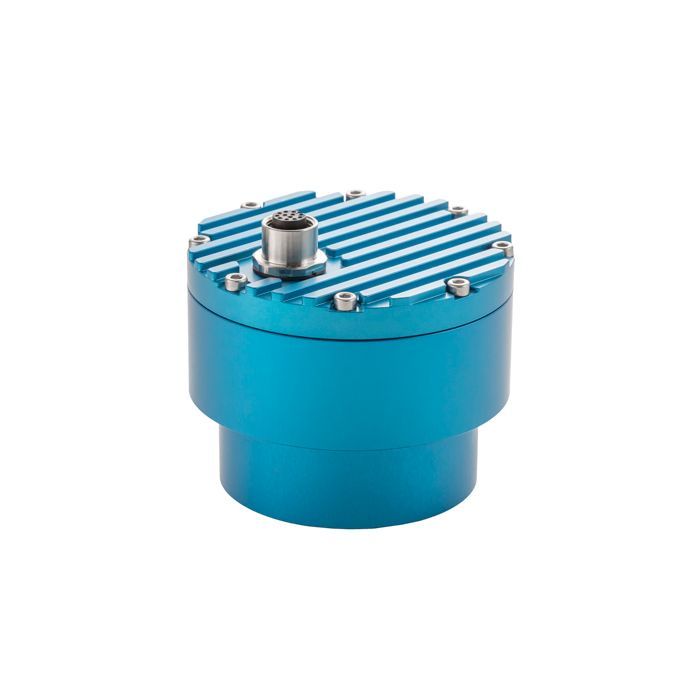

Geolux Non-Contact Snow Depth Sensor
The Geolux LX80-S is an innovative snow depth sensor that uses advanced radar technology to accurately measure the distance from the sensor down to the surface of the snow.
Features
- Accuracy is not affected by air density, temperature, or wind
- Small and robust device, easy to install and maintain
- Extremely narrow radar beam width of only 5° (+/- 2.5°)
Your Price
$2,593.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Geolux LX80-S is an innovative snow depth sensor that uses advanced radar technology to accurately measure the distance from the sensor down to the surface of the snow.
Radar Technology
Unlike traditional ultrasound devices that require temperature compensation due to their distance measurement being affected by air density, the LX80-S radar is not impacted by such environmental changes. Moreover, ultrasonic sensors are more susceptible to negative effects from snowfall or icicles, which can form close to the device. The LX80-S radar uses advanced signal processing algorithms for precipitation detection, and has a narrow radar beam of only 5°, which prevents such issues.
Installation
Installing and maintaining the LX80-S is easy, and the device can cover a long detection distance of up to 15 meters. The radar technology allows for non-invasive measurement from above the snow, ensuring that the snow’s structure is not disturbed in any way.
Applications
The LX80-S has many applications, including continuous monitoring of snowpack buildup and melting, making it essential for meteorological monitoring, hydrological planning, avalanche warning, and ski resorts. The device provides accurate data on snow depth, which is crucial for many industries, especially those that depend on snow conditions.
General Specifications
Radar Type: W-band 77-81 GHz FMCW radar
Beam Angle: 5°
Detection Distance: 15m
Blanking Distance: 0.4m
Resolution: 0.5mm
Accuracy: +/- 1mm
Sampling Frequency: 10 samples per second
IP Rating: IP68
Electrical & Mechanical
Connector: M12 circular 12 -pin
Input Voltage: 9 to 27 VDC
Power Consumption: operating 1.5 W; standby 0.15 W; sleep 0.03 W; extended 0.6 W
Max Current: < 470 mA
Temperature Range: -40 °C to +85 °C (without heating or coolers)
Enclosure Dimensions: Φ 65mm x H 78mm
Interface
Serial Interface: 1 x serial RS-485 half-duplex; 1 x serial RS-232 (two wire interface)
Serial Baud Rate: 9600 bps to 115200 bps
Serial Protocols: Modbus, GLX-NMEA
Analog Interface: 4-20 mA
Other Interfaces: SDI-12
Certificates
EN 61326-1:2013
ETSI EN 301 489-1
ETSI EN 301 489-3
EN 62368-1:2014+A11:2007;
EN 60950-22:2017
EN 61010-1:2010
FCC Part 15 class B
ISED RSS211
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
LX80-S
Non-contact radar snow depth sensor, 15m range, 10m cable (mounting bracket sold separately)
$2,593.00
Check Availability
