Geotech Oil/Water Interface Probes With Float
The Geotech Oil/Water Interface Probe With Float is a portable reel-mounted instrument that provides measurements of liquids lighter and heavier than water.
Features
- Audible & visible alarms activated on reel when probe contacts product & water
- Highly accurate Tefzel coated steel tape marked in engineering or metric increments
- Extremely durable polypropylene storage reel with rugged aluminum frame
Starting At
$1,600.00
Stock
Drop Ships From
Manufacturer
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Geotech Interface Probe With Float is a portable reel-mounted instrument that provides measurements of liquids lighter and heavier than water. When the Interface Probe is lowered down a well and contacts the product layer, a solid tone and red light alarm is activated at the reel. When the probe detects water, the tone begins to oscillate and the light changes to green.
Mechanics

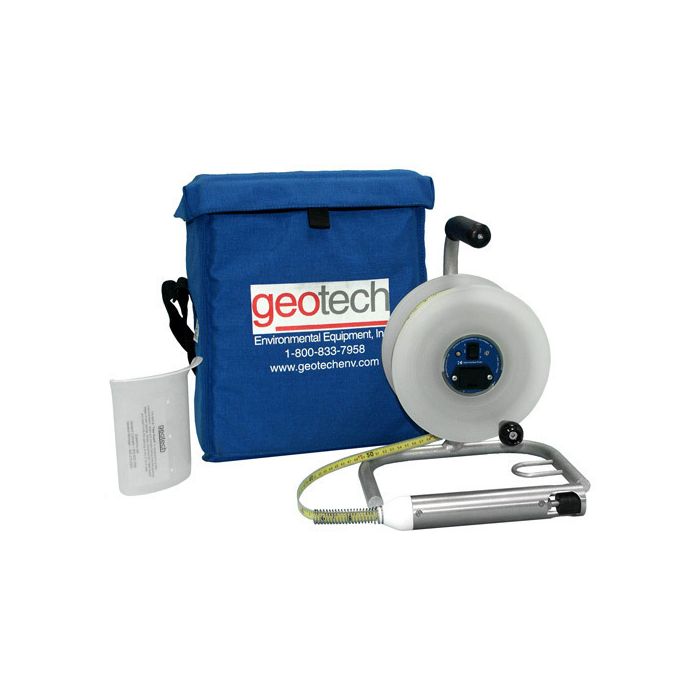

The durable storage reel is made from polypropylene with a rugged aluminum frame. The probe consists of a stainless steel and FEP probe attached to a reel-mounted, Tefzel-coated engineer's tape. The engineer's tape comes in engineering or metric increments and is accurate to 1/100 of a foot. The probe has a float that detects hydrocarbon levels and a pair of stainless steel contacts for sensing conductive fluids. The Interface Probe includes a padded carrying case and tape guide.
- (1) Interface probe with float
- (1) Carrying case
- (1) Tape guide
- (1) Operations manual
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
82050015
Interface probe with float & imperial increments, 100 ft.
$1,600.00
Drop Ships From
Manufacturer
Notice: At least 1 product is not available to purchase online
