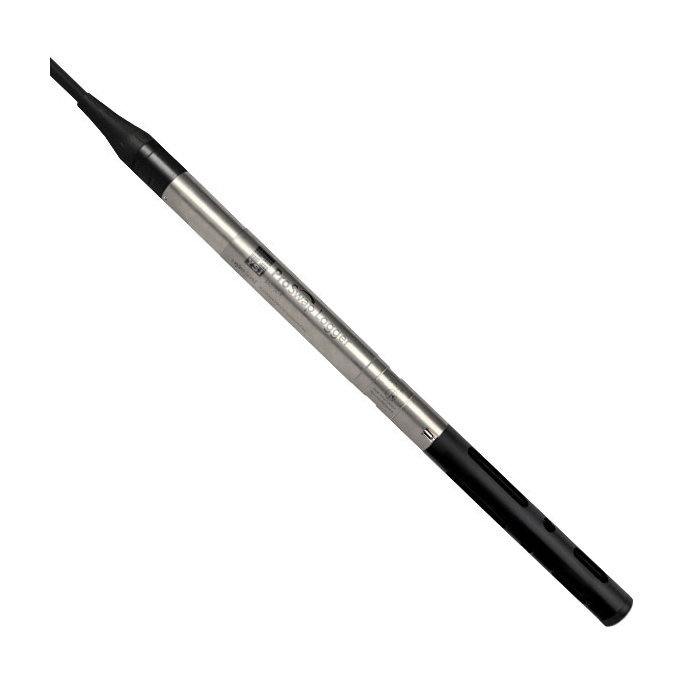

YSI ProSwap Logger
Designed for use with any single ProDSS Digital Smart Sensor, ProSwap Logger is cost-effective and customizable water quality and level monitoring solution.
Features
- User-replaceable water quality sensors alongside built-in temperature and depth
- Smart sensor technology with on-board monitoring for improved calibration and performance
- Titanium housing and waterproof connectors guarantee operation well into the future
List Price
$3,100.00
Starting At
$2,945.00
Stock
Check
Availability
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Monitoring Made Simple
ProSwap Logger features a universal port for a wide variety of real-time monitoring applications. Combine any digital smart sensor with the built-in temperature and depth sensors for more comprehensive measurements in a slim profiling package. Build a dedicated system for conductivity, dissolved oxygen, pH, turbidity, or algae monitoring applications with unique customization options.
Continuous Unattended Logging
Ideal for short- and long-term deployments, the on-board memory is capable of holding over 100,000 data sets. With ProSwap Logger, you can view trends in water quality over extended periods of time for a true representation of the ecosystem.
Flexible Deployment
ProSwap Logger is a powerful instrument in a small package. Suspend in groundwater wells, deployment pipes, and other tight or shallow spaces. A variety of power and deployment options are available to fit the needs of your system.
Reliable Connection
An integral cable allows for easy topside communication and data download without removing the sonde from its deployment location. A twist-lock connector provides quick and reliable communication via a dedicated handheld or Kor Software. With convenient options for calibration, deployment setup, and data collection, ProSwap Logger makes it easier than ever to effectively expand you smart watershed.
Digital Smart Sensors
ProSwap Logger is compatible with any individual ProDSS Digital Smart Sensor for fast, easy setup and high quality data. Each sensor features a welded titanium body, auto-recognition, and local storage of calibration for quick swapping. Trusted by water quality professionals, these sensors provide accurate data with advanced technology and proven performance!
| Material | 512 MB, >100,000 data sets (includes date, time, site, parameters) |
| Software |
Kor Software |
| Communications | Sonde: YSIP, SDI-12, Modbus* Adapters: USB, Flying-Lead |
| Power |
External Powering: 5.4 - 16V |
| Operating Temp. |
-5 to 50°C (23 to 122°F) |
| Storage Temperature | -20 to 50°C (-4 to 122°F) |
|
Depth Rating |
0 to 100 m (0 to 328’) |
| Battery Life |
≥ 90 days at 15 min log interval |
| Sampling Rate | 1 per second (fastest) to 1 per day (slowest) |
| Diameter | 2.65 cm (1.05”) |
| Length (with guard) without Battery | 49.70 cm (19.57”) |
| Length (with guard) with Battery | 57.35 cm (22.58”) |
| Sonde Weight** with Battery |
0.57 kg (1.25 lbs) |
| Sonde Weight** without Battery | 0.45 kg (0.99 lbs) |
| Warranty |
2 Years |
*Modbus output configurable with post-launch update
**Total weight will depend on cable length
- ProSwap Logger with Integrated Cable
- Probe Guard
- Weight (for Probe Guard)
- Storage Sleeve
- Sponge
- Graduated Cylinder
- USB Drive (contains Kor Software)
- Cable Connector Cap
- Cable Grip Kit
- Cable Management Kit (4m, 10m, 20m) or Cable Spool (30m+)
- Maintenance Kit
- Desiccant Kit (Vented units ONLY)
