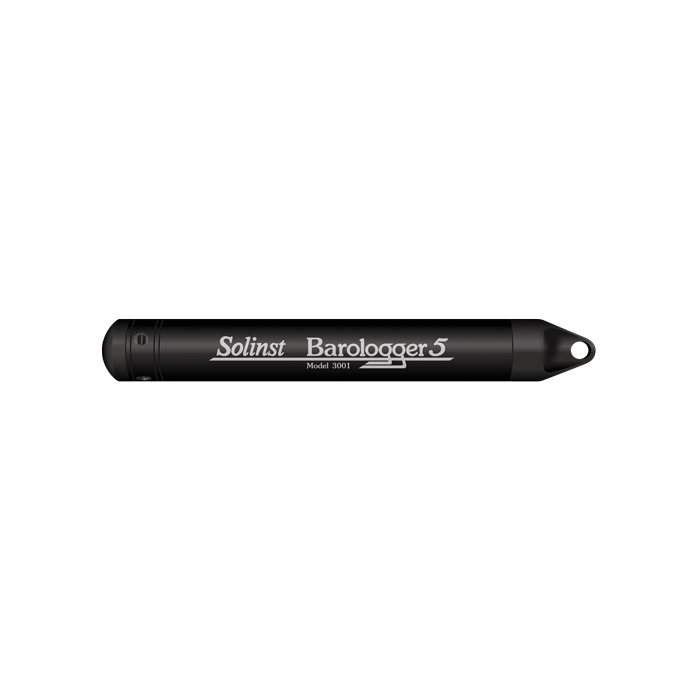

Solinst Barologger 5 Barometric Pressure Logger
The Solinst Barologger 5 uses pressure algorithms based on air rather than water pressure to provide accuracy for barometric pressure compensation of Levelogger data.
Features
- Single-eye optical interface for easy cleaning and scratch-resistance
- Increased memory: 150,000 sets of data
- Data Compensation Wizard in the Levelogger Software simplifies barometric compensation
List Price
$384.00
Your Price
$364.80
Stock
11AVAILABLE
Fondriest Exclusives
- Free ground shipping
- Expedited repair and warranty service
- Lifetime technical support
- More
Overview
The Solinst Barologger 5 is used to measure absolute pressure (water pressure + atmospheric pressure) expressed in feet, meters, centimeters, psi, kPa, or bar. The most accurate method of obtaining changes in water level is to compensate for atmospheric pressure fluctuations using a Barologger 5, avoiding time lag in the compensation.
Superior Accuracy
The Barologger 5 is set above high water level in one location on site. One Barologger can be used to compensate all Leveloggers in a 30 km (20 mile) radius and/or with every 300 m (1000 ft.) change in elevation. The Levelogger Software Data Compensation Wizard automatically produces compensated data files using the synchronized data files from the Barologger and Leveloggers on site. The Barologger 5 uses pressure algorithms based on air rather than water pressure, giving superior accuracy. The recorded barometric information can also be very useful to help determine barometric lag and/or barometric efficiency of the monitored aquifer.
Automatically Adjusts Measurements
The Barologger 5 records atmospheric pressure in psi, kPa, or mbar. When compensating submerged Levelogger 5, Edge, Gold or Junior data, Levelogger Software can recognize the type of Levelogger and compensate using the same units found in the submerged data file (e.g. feet or meters), making the Barologger 5 backward-compatible.
Questions & Answers
Select Options
Products
0 Item Selected
Part #
Description
Price
Stock
Quantity
114608
Barologger 5 pressure & temperature logger, air only
$364.80
11 Available
